Carl V. Thompson

• Title: Professor
• Department: Department of Material Science and Engineering

Collaborators

• W. Bao, Prof.  National
• U. of Singapore (NUS)
• W.C. Carter, Prof., MIT
• W.K. Choi, Prof.,, NUS
• J.A. del Alamo, Professor, MIT
• B.M. Gallant, student, MechE, MIT
• R. Enright, postdoc, MechE, MIT
• F. Gao, student, EECS, MIT
• C.L. Gan, Prof., Nanyang Technical University
• G.D. Nessim, Lecturer, Bar-Ilan U.
• T. Palacios, Prof., EECS, MIT
• W. Sasangka, Postdoc, SMART
• Y. Shao-Horn, Prof. MSE,
• Mech. E, MIT
• D.J. Srolovitz, Prof., U. Penn.
• S.C. Tan, Postdoc, MSE, MIT
• E.N. Wang, Prof., MechE, MIT
• K. Wang, Postdoc, SMART

Graduate Students

• A. Al-Obeidi, NSF Fellow, MSE
• T. Batcho, Res. Asst., MSE
• G. H. Kim, Res. Asst., MSE
• C.Q. Lai, SMA Fellow, NUS
• D. Li, Res. Asst. MSE
• P. Lianto SMA Fellow, NUS
• R. Mitchell, Res. Asst., MSE
• H. Yu, Res. Asst., MSE
• Z. Wen, Res. Asst., MIT
• L.T. Ye, SMA Fellow, SMART
• H. Zhao, Res. Asst., MechE
• R. Zucker, Res. Asst., MSE
• D. Perego, Visiting Student, MSE

Support Staff

• K. Fitzgerald, Admin. Asst. II

Publications

R.I. Made, C.L. Gan, L. Yan, K.H. Boon Kor, H.L. Chia, K.L. Pey, and C.V. Thompson, Experimental characterization and modeling of the mechanical properties of Cu–Cu thermocompression bonds for three-dimensional integrated circuits, Acta Materialia 60, 578 (2012).

L. Li, J. Joh, J.A. del. Alamo, and C.V. Thompson,Spatial distribution of structural degradation under high-power stress in AlGaN/GaN HEMTs, Appl. Phys. Letts. 100, 172109 (2012).

G.D. Nessim, A. Al-Obeidi, H. Grisaru, E.S. Polsen, C.R. Oliver, T. Zimrin, A.J. Hart, D. Aurbach, and C.V. Thompson, Enhanced synthesis of vertically aligned carbon nanotubes via in-situ generation of water vapor by preheating of added oxygen, Carbon 50, 4002 (2012).

C.V. Thompson, Solid State Dewetting of Thin Films, Ann. Rev. of Materials Research 42, 299-334 (2012).

A.L. Giermann and C.V. Thompson, Three-dimensional graphoepitaxial alignment resulting from solid-state dewetting of Au films on surfaces with monoperiodic topography, Applied Physics Letters 101, 051904 (2012).

W. Jiang, W. Bao, C.V.Thompson, and D.J. Srolovitz, Phase Field Approach for Simulating Solid-State Dewetting Problems, Acta Materialia 60, 5578–5592 (2012).

C.Q. Lai, C.V. Thompson, and W.K. Choi, Uni-, Bi- and Tri-Directional Wetting Caused by Nanostructures with Anisotropic Surface Energies, Langmuir 28(30), 11048–11055 (2012).

F. Gao, D. Chen, B. Lu, H.L. Tuller, C.V. Thompson, S. Keller, U.K. Mishra, and T. Palacios, Impact of Moisture and Fluorocarbon Passivation on the Current Collapse of AlGaN/GaN HEMTs, Electron Device Letters 33, 1378 – 1380 (2012).

R. Enright, N. Miljkovic, A. Al-Obeidi, C.V. Thompson, and E.N. Wang,Superhydrophobic condensation: The role of pinning barriers and size-scale, Langmuir 28, 1442 (2012).

B.M. Gallant, R.R. Mitchell, D.G. Kwabi, J. Zhou, L. Zuin, C.V. Thompson, and Y. Shao-Horn, Chemical and Morphological Changes of Li-O₂ Battery Electrodes Upon Cycling, J. Phys. Chem. C 116(39), 20800-20805 (2012).

P. Lianto, S. Yu, J. Wu, C.V. Thompson and W.K. Choi, Vertical etching with isolated catalysts in metal-assisted chemical etching of silicon,

Silicon Nanowires for Chemical Sensing Systems

• Authors: H. Zhao, A. Al-Obeidi, C. V. Thompson
• Sponsorship: Iberian Nanotechnology Laboratory-MIT Program,

Silicon nanowires (NWs) have attracted interest for sensing applications due to their high surface-to-volume ratios. When a NW is configured as a field effect transistor (FET), specific binding of chemical and biological species to the NW surface can lead to depletion or accumulation of carriers at the NW surface and result in a significant conductivity change.  NW-based biochemical sensing devices for real-time and high sensitivity detection in aqueous solution have been previously reported((Y. Cui, Q. Wei, H. Park, C. M. Lieber, “Nanowire nanosensors for highly sensitive and selective detection of biological and chemical species,” Science, vol. 293, pp. 1289-1292, Aug. 2001.)),^[1]. However, most NW biochemical sensor studies have focused on devices that have been made using individual nanowires lying on a substrate surface. In contrast, vertical freestanding NW FET sensors have greater potential for very high sensitivity using a minimum of space.

Metal catalyzed etching (MCE) is a low-cost, room-temperature method that enables fabrication of highly ordered Si NW arrays of large aspect ratios with simple processes. Moreover, using various film patterning techniques, we have shown that Si NW arrays can be made in patterned channels^[2],^[3] (see Figure 1). Such structures make them very promising for detection of multiple targets in an integrated microfluidic system. A key step in fabricating vertically aligned FET-based sensors is creating a reliable top electrical contact. We have shown that angled evaporation of gold or nickel through a shadow mask can be used to define a top contact (see Figure 2). We have begun work to functionalize and test the sensing performance of the SiNW sensor towards a fully functional, multichannel microfluidic system.



Figure 1: Vertical silicon nanowire arrays in channels using metal catalyzed etching.



Figure 2: Au top contact on vertically aligned SiNW arrays using tilted ebeam evaporation.




1. E. Stern, J. F. Klemic, D. A. Routenberg, P. N. Wyrembak, D. B. Turner-Evans, A. D. Hamilton, D. A. LaVan, T. M. Fahmy, M. A. Reed, “Label-free immunodetection with CMOS-compatible semiconducting nanowires,” Nature, vol. 445, pp. 519-522, Feb. 2007. [↩]
2. S. W. Chang, V. P. Chuang, S. T. Boles, C. A. Ross, and C. V. Thompson, “Densely packed arrays of ultra‐high‐aspect‐ratio silicon nanowires fabricated using block‐copolymer lithography and metal‐assisted etching,” Advanced Functional Materials, vol. 19, pp. 2495-2500, Aug. 2009 [↩]
3. S. W. Chang, V. P. Chuang, S. T. Boles, and C. V. Thompson, “Metal‐Catalyzed etching of vertically aligned poly-silicon and amorphous Silicon Nanowire Arrays by Etching Direction Confinement,” Advanced Functional Materials, vol. 20, pp. 4364-4370, Dec. 2010. [↩]

Fabrication of Si Nanowire-Based Capacitors for Power Management

• Authors: W. Zheng, P. Lianto, W. K. Choi, C. V. Thompson
• Sponsorship: SRC, Singapore-MIT Alliance

Capacitors with high capacitance density (capacitance per footprint area) have potential applications in autonomous microsystems and for power management in high performance integrated circuits.  Introducing high surface-to-volume ratio structures has been demonstrated as an effective way to increase the electrode area and therefore to improve the capacitance density. We are investigating the use of arrays of silicon nanowires for this function.

In earlier work, we demonstrated the feasibility of using metal catalyzed etching (MCE) to fabricate Si nanowires to make on-chip capacitors (Figure 1)^[1].  MCE is a room temperature wet etching process that has been used to create arrays of nanowires with radii and spacing in the range of tens of nanometers, with wire aspect ratios of over 200 to 1^[2].  We have demonstrated a factor of approximately 10 times improvement in the capacitance density over planar devices for nanocapacitors with a 200-nm period and 1.5-μm height.

Our current work is focused on improving the capacitor performance by decreasing the equivalent series resistance. Lower resistance will provide a higher AC effective capacitance density and less heat generation. However, we found that starting with a heavily doped substrate leads to formation of porous silicon nanowire structures, instead of solid single crystalline nanowires from lightly doped substrate (Figure 2). The porous nanowires have low conductivities and will be inappropriate for this application. Therefore, we have been looking for alternative ways to reduce the series resistance. One is starting with an epitaxial wafer that has a lightly doped epitaxial layer on top of a heavily doped bulk. After MCE, solid and single crystalline arrays of lightly doped nanowires on top of a heavily doped substrate will be generated.  Another approach is to develop a post-MCE doping process to increase the doping level in lightly doped solid nanowires, which will produce solid but heavily doped nanowires. The last approach is conversion of silicon nanowires to silicide nanowires. Also, in studies of the mechanism of MCE we have found that external electric fields can affect porosity^[3].



Figure 1: Schematic nanocapacitor fabrication process flow.



Figure 2: TEM and SAED of silicon nanowires generated from (a) heavily and (b) lightly doped substrates by MCE.




1. S. W. Chang, J. Oh, S. T. Boles, and C. V. Thompson, “Fabrication of silicon nanopillar-based nanocapacitor arrays,” Applied Physics Letters 96, 153108 (2010). [↩]
2. S.W. Chang, V. P. Chuang, S. T. Boles, C. A. Ross, and C. V. Thompson, “Densely-packed  arrays of ultrahigh-aspect-ratio silicon nanowire fabricated using block copolymer lithography and metal-assisted etching,” Advanced Functional Materials 19, 2495 (2009). [↩]
3. P.. Lianto, S. Yu, J. Wu, C.V. Thompson, and W. K. Choi, “Vertical etching with isolated catalysts in metal-assisted chemical etching of silicon,” Nanoscale 4(23), 7532-7539 (2012). [↩]

Mechanisms for Intrinsic Stress Evolution during Deposition of Polycrystalline Films

• Authors: H. Yu, C. V. Thompson
• Sponsorship: NSF

Complex kinetic processes are involved during the growth of polycrystalline films, which is typically carried out far from equilibrium. Minor changes in processing conditions can lead to tremendous differences in surface morphology, grain structure, and residual stress in the films. This result strongly influences their performance and reliability in nano- and micro-electromechanical devices and systems (N/MEMS)^[1]. Control of the residual stress is especially important in the devices based on micro-beam structures, such as electrically actuated switches and accelerometers. For example, for doubly-supported beams, an average compressive stress as small as 10 MPa can cause buckling, while a tensile stress can cause changes in the beam’s stiffness. Figure 1 shows examples of problems caused by residual stresses in released micro-structures and devices.

Through in situ real-time measurements we have studied the intrinsic stress evolution of a number of materials at different homologous temperatures (deposition temperature divided by the melting temperature) for several materials (Figure 2). One general trend can be found: the stress becomes more compressive when the homologous temperature is higher. In particular, at intermediate homologous temperatures, the instantaneous stress changes from compressive to tensile during film thickening. Previous models^[2][3][4] are inadequate to explain this transition behavior. By characterizing the film microstructure as a function of the film thickness, we conclude that this transition originates from the increase of grain size during film thickening, which has two consequences. First, it changes the bulk stress of the film during deposition and causes a tensile component of the instantaneous stress. Second, it changes the grain size dependence of the compressive component, the magnitude of which is controlled by the competition between adatom-2D island incorporation and adatom-GB incorporation.



Problems caused by residual stress in MEMS^[5].

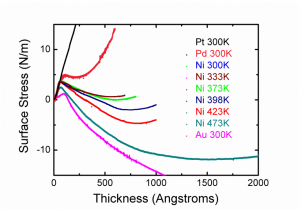

Surface stress (stress-thickness product) as a function of film thickness during deposition of polycrystalline films curves of Pt, Pd, and Au.




1. C. T. Leondes, MEMS/NEMS : handbook techniques and applications ,Springer, New York, 2006). [↩]
2. F. Spaepen, “Interfaces and stresses in thin films,” Acta Materialia , vol. 48, pp. 31-42,  Jan. 2000. [↩]
3. C. Friesen, and C. V. Thompson, “Reversible stress relaxation during pre-coalescence interruptions of volmer-weber thin film growth,” Physical Review Letters, vol. 89 p.126103, Sept. 2002. [↩]
4. E. Chason et al.,  “Origin of compressive residual stress in polycrystalline thin films,” Physical Review Letters, vol. 88, vol. 15, p. 156103, Apr. 2002. [↩]
5. C. T. Leondes, MEMS/NEMS : handbook techniques and applications ,Springer, New York, 2006). [↩]

Quantitative Analysis and Modeling of Templated Solid-state Dewetting of Thin Single-crystal Ni Films

• Authors: G. H. Kim, R. V. Zucker, W. C. Carter, W. Bao, D. J. Srolovitz, C. V. Thompson
• Sponsorship: Singapore-MIT Alliance

Thin films are generally metastable in the as-deposited state and will dewet (agglomerate) when heated.  Nanometer scale films (<100 nm thick) can dewet at temperatures well below the melting temperature of the film, and dewetting occurs while the film remains solid.  This phenomenon can limit the use of very thin films in microsystems, but it can also be used to controllably produce complex structures^[1].   Dewetting occurs through retraction of the edges of naturally forming holes or at patterned edges of films. In single crystal films, anisotropy in surface energy and diffusivity drives the dewetting process to result in regular patterns that relate to the crystal symmetry. We are investigating use of anisotropic dewetting as a self-assembly method to generate complex, small, predetermined patterns. A quantitative understanding of dewetting mechanisms is critical for design of self-assembled structures made through dewetting. We measured the rates of anisotropic edge retraction by solid-state dewetting in kinetically stable edge orientations.  These measurements can also be used to estimate the edge retraction rates in a general crystallographic orientation^[2]. Additionally, an analytical model for solid-state dewetting via surface diffusion for fully faceted materials has been developed to test our understanding of dewetting mechanisms (Figure 1). This two-dimensional model provides excellent agreement with experimental edge retraction rates for kinetically stable edges^[3].  We also developed a three-dimensional phase-field model for dewetting of materials with isotropic surface energies^[4]. A three-dimensional model for dewetting of materials with anisotropic surface energies is under development.



Figure 1: (a) Partially dewetted patches patterned from a (100) film into squares with different in-plane orientations; top is an earlier time than bottom. (b) Dewetting patterns of larger squares^[5].



Figure 2: (a) Cross-sectional SEM image of a [010] edge in a (100) film. (b) Corresponding experimental and theoretical retraction distance vs. time^[6],^[7].




1. J. P. Ye and C. V. Thompson, “Templated solid state dewetting to controllably produce complex patterns,” Advanced Materials, vol. 23, pp. 1567-1571, 2011. [↩]
2. G. H. Kim, R. V. Zucker, W. C. Carter, and C. V. Thompson, “Quantitative analysis of anisotropic edge retraction by solid-state dewetting of thin single crystal films,” Journal of Applied Physics, vol. 113, 043512, 2013. [↩]
3. R. V. Zucker, G. H. Kim, W. C. Carter, C. V. Thompson,  “A model for solid state dewetting of a fully faceted thin film,” C. R. Phys. (to be published). [↩]
4. W. Jiang, W. Bao, C. V. Thompson, and D. J. Srolovitz, “Phase Field Approach for Simulating Solid-State Dewetting Problems,” Acta Materialia 60, 5578–5592 (2012). [↩]
5. G.. H. Kim, R. V. Zucker, W. C. Carter, and C. V. Thompson, “Quantitative analysis of anisotropic edge retraction by solid-state dewetting of thin single crystal films,” Journal of Applied Physics, vol. 113, 043512, 2013. [↩]
6. R. V. Zucker, G. H. Kim, W. C. Carter, C. V. Thompson, “A model for solid state dewetting of a fully faceted thin film,” C. R. Phys. (to be published). [↩]
7. W. Jiang, W. Bao, C. V. Thompson, and D. J. Srolovitz, “Phase Field Approach for Simulating Solid-State Dewetting Problems,” Acta Materialia 60, 5578–5592 (2012). [↩]

Structured Silicon for Energy Storage in Microsystems

• Authors: A. Alobeidi, C. V. Thompson.
• Sponsorship: Singapore-MIT Alliance for Research and Technology

Micro-batteries provide a critical component for self-powered autonomous microsystems. Lithium-ion batteries provide relatively high energy storage capacities.  Improvement in energy storage capacities over current generation lithium-ion batteries is achievable by using silicon as the anode material. Silicon offers the highest known lithium capacity at the cost of large volume changes, making monolithic silicon structures such as fully dense films or substrates unusable. For silicon-based lithium batteries, nanostructured silicon with high surface-to-volume ratios and superior mechanical properties over bulk are being investigated^[1],^[2].

We use metal-catalyzed etching (MCE) to fabricate porous silicon from fully dense silicon films, a process that offers low-cost, room temperature processing of silicon^[3][4][5][6].  A thin discontinuous metal film is deposited on the silicon and catalyzes the dissolution of silicon when immersed in a solution containing hydrofluoric acid and an oxidant like H₂O₂. While the monolithic film undergoes significant pulverization and fails in the first few cycles, the porous silicon film shows stable cycling over 25 cycles at a capacity of 2250 mAhg^-1 at high rates, expanding nearly three times its size but remaining adherent to the current collector (Figures 1 and 2). Work is currently underway to improve the cyclability of such films and integrate them into solid state batteries for on-chip energy storage.



Figure 1: Porous amorphous silicon on glass using MCE. This structure is able to accommodate the volume expansion that occurs during lithiation.



Figure 2: After lithiation, the porous amorphous silicon film breaks into large columnar islands that remain adherent to the current collector.




1. S. M. Hemmingsen, Soft Science. Saskatoon: University of Saskatchewan Press, 1997. [↩]
2. J. R. Beveridge and E. M. Riseman, “How easy is matching 2D line models using local search?” IEEE Transactions on Pattern Analysis and Machine Intelligence, vol. 19, pp. 564-579, June 1997. [↩]
3. J. L. Dawson and T. H. Lee, “Automatic phase alignment for a fully integrated Cartesian feedback power amplifier system,” IEEE Journal of Solid-State Circuits, vol. 38, no. 12, pp. 2269-2279, Dec. 2003. [↩]
4. S. J. Steinmuller, C. M. Gurtler, G. Wastlbauer, and J. A. Bland, “Separation of electron spin filtering and magnetic circular dichroism effects in photoexcitation studies of hybrid ferromagnet/GaAs Schottky barrier structures,” Physical Review B, vol. 72, pp. 045301:1-5, July 2005. [↩]
5. N. Osifchin and G. Vau, “Power considerations for the modernization of telecommunications in Central and Eastern European and former Soviet Union (CEE/FSU) countries,” in Second International Telecommunications Energy Special Conference, 1997, pp. 9-16. [↩]
6. S. Al Kuran, “The prospects for GaAs MESFET technology in dc-ac voltage conversion,” in Proc. Fourth Annual Portable Design Conference, 1997, pp. 137-142. [↩]

Materials and Structures for Li-air Batteries

• Authors: R. Mitchell, B. Gallant, T. Batcho, D. Li, Y. Shao-Horn, C. V. Thompson
• Sponsorship: National Science Foundation, MERSEC

Lithium-air batteries hold promise for the next generation of electric vehicles and other applications. By reacting oxygen directly with lithium ions to form Li₂O₂ on discharge, these batteries can achieve energy densities 3-5 times higher than current lithium-ion batteries^[1]. However, a number of challenges exist for implementation, including poor rate capability, poor cyclability, high overpotentials upon charging, and electrode and electrolyte instability^[2]. We seek to address these issues by developing new electrode materials and architectures.

Aligned arrays of carbon nanotubes and nanofibers (CNT/CNFs) provide ideal conducting scaffolds for growth of Li₂O₂ particles, while the CNT/Fs themselves are low in mass and occupy a small volume fraction of the discharged electrode.  We have grown aligned CNFs 5-10 nm in diameter on oxidized silicon substrates and de-laminated them in the form of cohesive carpets.  These free-standing conducting carpets were then placed directly into lithium-air cells. We observed near-ideal gravimetric capacities (Figure 1) and high volumetric energy capacities.  Control of particle morphology is critical for the high volumetric capacities needed for most applications. Two distinct types of particle morphologies were observed upon discharge, depending on the rate and depth of discharge^[3]. At low charge rates or high depths of discharge, we observe the formation of large toroid particles. At high rates of discharge, we observe the formation of copious small particles (Figure 2). From x-ray diffraction and selected area electron diffraction, we determined that these are Li₂O₂ particles with predominantly (0001) surfaces^[3].

Additionally, we have studied the stability of these carbon nanotube electrodes in a lithium-air cell^[4]. We observed higher charging overpotentials as the cycle number increased. Using X-ray absorption near edge spectroscopy, we determined that Li₂CO₃ formed in increasing amounts upon cycling at the interface between lithium peroxide and the carbon nanotube [4]. We attribute poor cycling performance and higher charge overpotentials to this Li₂CO₃ formation, possibly due to reaction of Li₂O₂ with the CNTs.  We are currently carrying out research to address this issue.



Figure 1: A plot of the gravimetric power and energy of CNT and CNF batteries as compared to other lithium-air and lithium-ion cathodes and the theoretical limit of gravimetric energy^[5].



Figure 2: Lithium peroxide particles formed at (a) low charge rates or high depth of discharge, and (b) at high charge rates.




1. R. R. Mitchell, B. M. Gallant, C. V. Thompson, and Y. Shao-Horn, “All-carbon-nanofiber electrodes for high-energy rechargeable Li–O2 batteries,” Energy & Environmental Science, vol. 4, no. 8, p. 2952, Aug. 2011. [↩]
2. Y. C. Lu, B. M. Gallant, D. G. Kwabi, J. R. Harding, R. R. Mitchell, M. S. Whittingham, and Y. Shao-Horn, “Lithium-oxygen batteries: bridging mechanistic understanding and battery performance,” Energy and Environmental Science, vol. 6., p. 750-768, Jan. 2013. [↩]
3. R. R. Mitchell, B. M. Gallant, Y. Shao-Horn, and C. V. Thompson, “Mechanisms of Morphological Evolution of Li₂O₂ Particles during Electrochemical Growth,” Journal of Physical Chemistry Letters, vol. 4., no. 7, p. 1060, Mar. 2013. [↩] [↩]
4. B. M. Gallant, R. R. Mitchell, D. G. Kwabi, J. Zhou, L. Zuin, C. V. Thompson, and Y. Shao-Horn, “Chemical and Morphological Changes of Li–O 2 Battery Electrodes upon Cycling,” The Journal of Physical Chemistry C, vol. 116, no. 39, pp. 20800–20805, Oct. 2012. [↩]
5. Y. C. Lu, B. M. Gallant, D. G. Kwabi, J. R. Harding, R. R. Mitchell, M. S. Whittingham, and Y. Shao-Horn, “Lithium-oxygen batteries: bridging mechanistic understanding and battery performance,” Energy and Environmental Science, vol. 6., p. 750-768, Jan. 2013. [↩]

TEM Studies of Degradation Studies of AlGaN High Electron Mobility Transistors

• Authors: TEM Studies of Degradation Studies of AlGaN High Electron Mobility Transistors
• Sponsorship: MURI



Figure 1: Cross sectional TEM images at the drain edge of the gate in the AlGaN/GaN HEMTs stressed at Vgs = -7 V and Vds = 43 V for 3000s in vacuum of 1×10-7 Torr (a) dry air (b) ambient air (c) and in water saturated air (d).

AlGaN/GaN High Electron Mobility Transistors (HEMT) are candidate for high-power amplifiers. However, for wide scale implementation reliability issues for these devices must be overcome.  AlGaN/GaN devices have typically shown rapid degradation in output power and drain current within a short time during high voltage off-state stress. The degradation mechanisms studied to date for these devices are related to the formation of physical defects (pits and cracks) in the drain-side of the gate under high-voltage off-state stress^[1][2].  It has been proposed that a field-induced inverse piezoelectric effect of AlGaN material might play a role in causing surface cracking and pitting^[2][3]. On the other hand, it has also been proposed that the pits could be caused by electrochemical reactions at the surface due to the combination of high electric field and oxygen^[4][5]. However, direct experimental evidence and detailed mechanisms for the nature of this structural degradation in AlGaN/GaN HEMTs is still needed.

A series of experiments was carried out in which devices were degraded in different ambients (water saturated air, ambient air, dry air and vacuum), in the off-state mode. We found that the size of the pits that formed was dependent on the amount of moisture present in the ambient.  Cross sectional transmission electron microscopy (TEM) images of these devices at the drain edge of the gate after electrical stressing at Vgs = -7 V and Vds = 43 V for 3000s under the four different ambient conditions are shown in Figure 1. Pit formation is clearly seen to occur through a water-assisted reaction, most likely through electrochemical reactions at the gate edge.

1. S.Y. Park, C. Floresca, U. Chowdhury, J. L. Jimenez, C. Lee, E. Beam, P. Saunier, T. Balistreri, and M.J. Kim, “Physical dedgradation of GaN HEMT devices under high drain bias reliability testing,” Microelectron Reliablity, vol. 49, no. 5, pp. 478-483, 2009. [↩]
2. J. Joh, J.A. del Alamo, “Critical voltage for electrical degradation of GaN high-electron mobility transistors, “IEE Electron Dev. Letters, vol. 29, no. 4, pp. 287-289, 2008. [↩] [↩]
3. J.A. del Alamo and J. Joh, “GaN HEMT reliability,” Microelectron Reliability, vol. 49, no. 5, pp. 1200-1206, 2009. [↩]
4. P. Makaram, J. Joh, J.A. del Alamo, T. Palacios and C.V. Thompson, “Evolution of structural defects associated with electrical degradation in AlGaN/GaN high electron mobility transistors, “ Applied Physics Letters, vol. 96, no. 23, pp. 233509, 2010. [↩]
5. F. Gao, B. Lu, L. Li, S. Kaun, J.S. Speck, C.V. Thompson and T. Palacios, “Role of Oxygen in the OFF-state degradation of AlGaN/GaN high electro mobility transistors,”  Applied Physics Letters, vol. 99, no. 22, pp. 223506, 2011. [↩]
